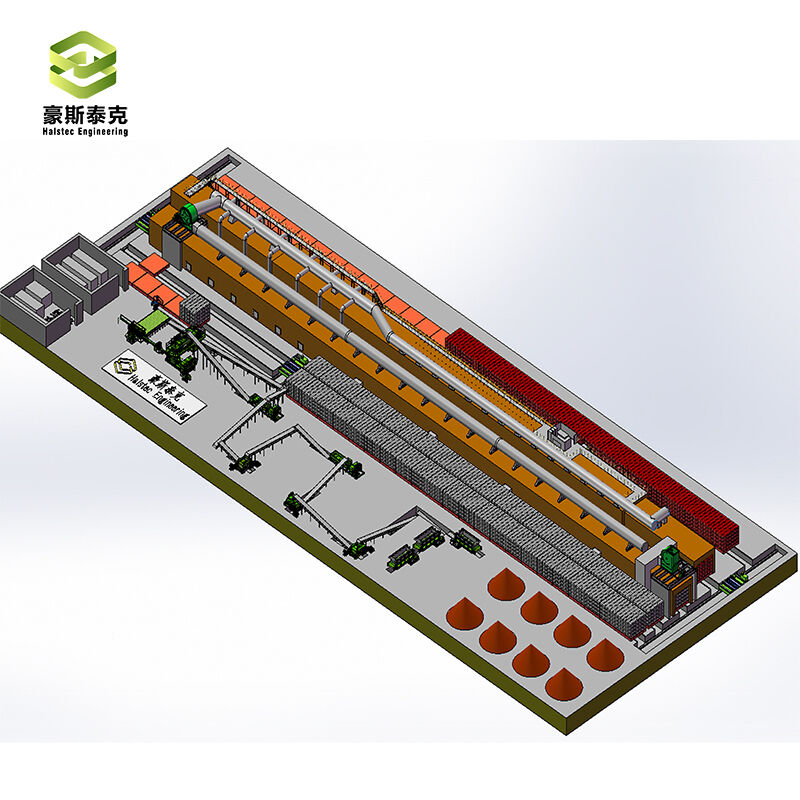

Straight Tunnel kiln Introdcution
Tunnel Kiln is a type of brick drying and burning system. When get the green green brickss, Robot will place them on the kiln cars, then kiln cars will enter the tunnel dryer frist to finish the brick drying process, then will enter the tunnel burner to finish the brick burning process. Tunnel Kiln normally with the length of 90-120m, kiln section or kiln inner width is decided by the production capacity requirments.
The tunnel kiln burning process is currently the most widely used mature sintering solution in the world, mainly suitable for medium and large production capacity requirements of 150,000 to 350,000 standard bricks per day. It has the core advantages of high investment cost performance, strong operation stability, and flexible production capacity adjustment, making it the mainstream choice for new standardized sintered brick projects.
Features:
-suitable for different raw materials, especially workable for the solid waste treatment
-various types of finished bricks
-higher output, lower failure rate
-save energy, no pollution
-coal, natural gas as burning fuel
-need kilns cars, pushers and ferry cars
-land area: 20,000-30,000M2
-fully automatic for whole production line
-easy management and production
Straight Tunnel Kiln Show:
From Green Bricks to Finished Bricks
Kiln Top
Inside the Kiln
Kiln Cart
Project Show:
India
Project: Sauga BricksLocation: Delhi, India
Kiln Section: 3.7m
Daily Output: 100,000–200,000 bricks/day
Brick Size: 240*115*70mm
Uzbekistan
Brick size: 250*120*88mm
Brick output: 100,000 red bricks per day
Production line: JKZ90 double-stage vacuum extruder
Kiln design: 4.4m section tunnel kiln with one dryer and one burner
